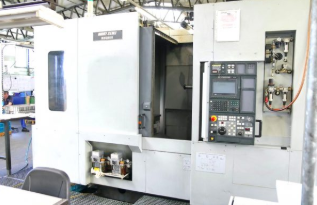

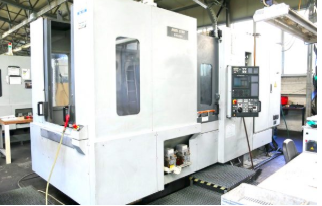

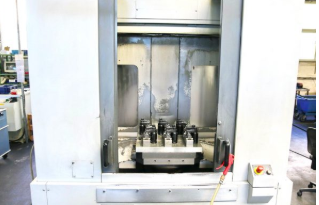

Type: HORIZONTAL MACHINING CENTER
Producer: Mori Seiki
Model: NH5000
Year of production: 2003

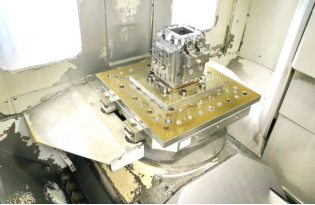

Pallet dimensions : 500×500 mm
Max. weight: 500 Kg
X-Axis: 630 mm
Y-Axis: 630 mm
Z-Axis: 670 mm

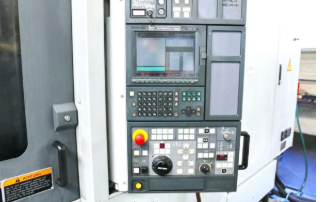

CNC Control: MSG-501

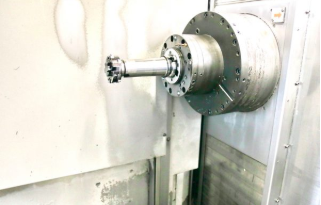

Spindle speed: 14.000 rpm
Rapid x/y/z: 50 m/min
Magazine places: 60
Tape: MAS-BT40
Max. tool length: 400 mm
Max. tool diameter: 80 mm
Max. tool diameter (with free adjacent seats) : 180 mm
Options: cooling system through spindle, chip conveyor, Ethernet interface
Machine length: 4650 mm
Machine width: 2750 mm
Machine height : 3000 mm
Machine weight: 11000 Kg
